MGA-231T6

High-Gain GPS LNA

MGA-231T6 Features

* Very Low Noise Figure

* High Gain and Linearity

* Low External Component Count

* Low Shutdown Current

* CMOS compatible shutdown pin (SD) current @ Vsd= 1.8V : 0.11mA

* Useable down to 1.8V supply

* Adjustable current via single external resistor/voltage

* Small pac

MGA-231T6 General Description

Avago Technologies’ MGA-231T6 is a low-noise amplifier (LNA) designed for GPS/ISM/Wimax applications in the (0.9-3.5)GHz frequency range. The LNA uses Avago Technologies’ proprietary GaAs Enhancement-mode pHEMT process to achieve high gain with very low noise figure and high linearity. Noise figure .

MGA-231T6 Datasheet (201.43 KB)

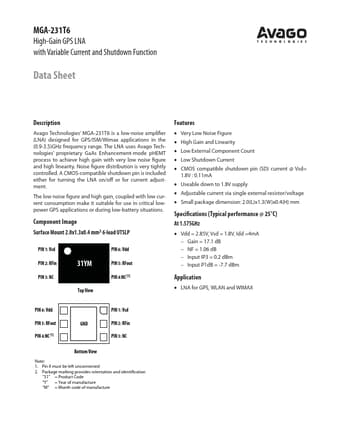

Preview of MGA-231T6 PDF

Datasheet Details

Part number:

MGA-231T6

Manufacturer:

Avago Technologies

File Size:

201.43 KB

Description:

High-gain gps lna.
