MGA-23003 Datasheet, Amplifier, Avago

MGA-23003 Features

  • Amplifier
  • Advanced GaAs E-pHEMT
  • 50  all RF ports
  • Full performance across entire 3.3-3.8GHz
  • 13dB gain attenuation in low power mode with Idsq reduction

PDF File Details

Part number:

MGA-23003

Manufacturer:

Avago

File Size:

200.50kb

Download:

📄 Datasheet

Description:

3.3-3.8 ghz 3x3mm wimax power amplifier. Avago Technologies MGA-23003 linear power amplifier is designed for mobile and fixed wireless data applications in the 3.3 to 3.8 GHz

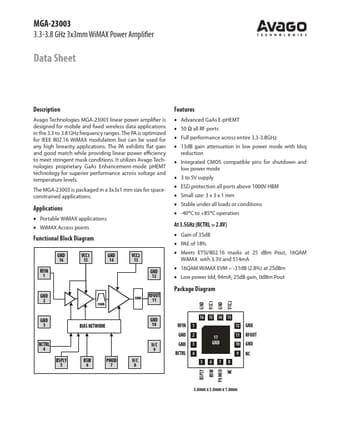

Datasheet Preview: MGA-23003 📥 Download PDF (200.50kb)
Page 2 of MGA-23003 Page 3 of MGA-23003

MGA-23003 Application

  • Applications in the 3.3 to 3.8 GHz frequency ranges. The PA is optimized for IEEE 802.16 WiMAX modulation but can be used for any high linearity app

TAGS

MGA-23003
3.3-3.8
GHz
3x3mm
WiMAX
Power
Amplifier
Avago
