MGA-242740-02

High Efficiency Linear Power Amplifier

MGA-242740-02 Features

* 15 dB Gain

* 40 dBm P-3dB

* 33 dBm Linear Pout @ 2.5% EVM (802.11 64QAM)

* 25% Efficiency at 33 dBm Linear Output Power

* Fully Matched Input and Output for Easy Cascade

* + 28V Bias Voltage

* Surface Mount Package with RoHS Compliance

MGA-242740-02 General Description

The MGA-242740-02 is a power amplifier with the State-of-the-Art linear power-added-efficiency between 2.4 GHz and 2.7 GHz frequency band. Based on advanced robust GaN device technology, the power-added-efficiency of this power amplifier is as high as 25% when it outputs 2W linear burst power with .

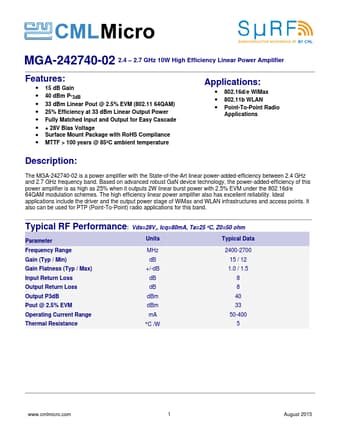

MGA-242740-02 Datasheet (390.75 KB)

Preview of MGA-242740-02 PDF

Datasheet Details

Part number:

MGA-242740-02

Manufacturer:

CML

File Size:

390.75 KB

Description:

High efficiency linear power amplifier.
