ACPL-P481 - High CMR Optocoupler

ACPL-P481 Description

ACPL-P481 and ACPL-W481 Inverted Logic, High CMR Optocoupler for Intelligent Power Modules and IGBT/MOSFET Gate Drive Data Sheet .
The high-speed ACPL-P481/W481 optocoupler contains a GaAsP LED, photo detector and a Schmitt trigger that eliminates the need for external waveform co.

ACPL-P481 Features

* Inverted output type

ACPL-P481 Applications

* IPM Interface Isolation
* Isolated IGBT/MOSFET Gate Drive
* AC and Brushless DC Motor Drives
* Industrial Inverters
* General Digital Isolation Functional Diagram Anode 1 6 VCC N. C. 2 5 VO Cathode 3 SHIELD 4 Ground Note: A 0.1 µF bypass capacito

📥 Download Datasheet

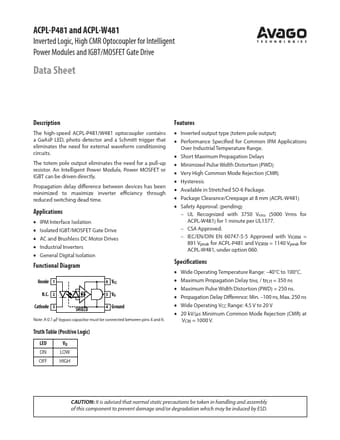

Preview of ACPL-P481 PDF
