ACPL-P302 - 0.4 Amp Output Current IGBT Gate Driver Optocouplers

ACPL-P302 Description

ACPL-P302/W302 0.4 Amp Output Current IGBT Gate Driver Optocouplers Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options a.
The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage.

ACPL-P302 Features

* x High speed response. x Ultra high CMR. x Bootstrappable supply current. x Available in Stretched SO-6 package x Package Clearance/Creepage at 8mm (ACPL-W302) x Safety Approval: UL1577 recognized with 3750 Vrms for 1 minute for ACPL-P302 and 5000 Vrms for 1 minute for ACPLW302. CSA Approved. IEC/EN

📥 Download Datasheet

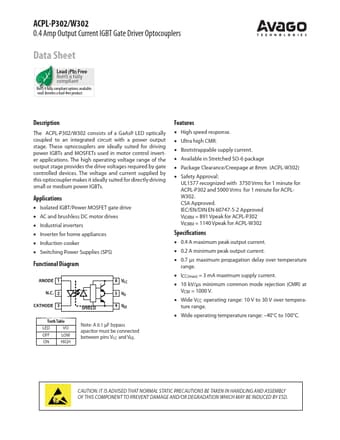

Preview of ACPL-P302 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACPL-P302
Manufacturer
Avago Technologies
File Size
205.63 KB
Datasheet
ACPL-P302-AvagoTechnologies.pdf
Description
0.4 Amp Output Current IGBT Gate Driver Optocouplers
