ACPL-P302-560E Datasheet - Avago Technologies

ACPL-P302-560E 0.4 Amp Output Current IGBT Gate Driver Optocouplers

The ACPL-P302/W302 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the dr.

ACPL-P302-560E Features

* x High speed response. x Ultra high CMR. x Bootstrappable supply current. x Available in Stretched SO-6 package x Package Clearance/Creepage at 8mm (ACPL-W302) x Safety Approval: UL1577 recognized with 3750 Vrms for 1 minute for ACPL-P302 and 5000 Vrms for 1 minute for ACPLW302. CSA Approved. IEC/EN

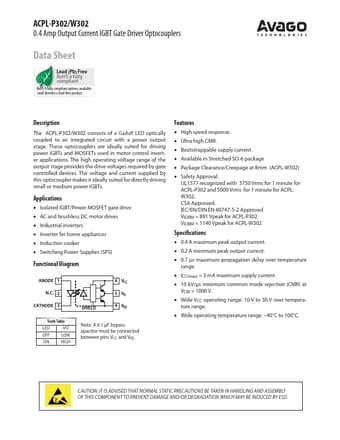

ACPL-P302-560E Datasheet (205.63 KB)

ACPL-P302-560E Datasheet Preview — Preview of ACPL-P302-560E PDF

Datasheet Details

Part number:

ACPL-P302-560E

Manufacturer:

Avago Technologies

File Size:

205.63 KB

Description:

0.4 amp output current igbt gate driver optocouplers.
