ASMB-MTB1-0A3A2 - PLCC-4 Tricolor Black Surface LED

Avago

📥 Download Datasheet

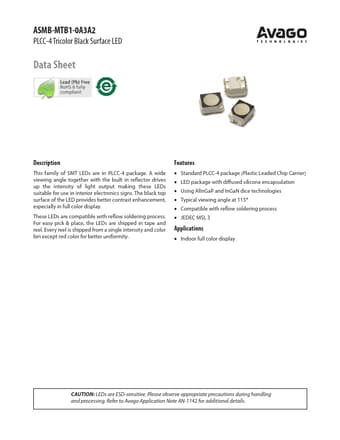

ASMB-MTB1-0A3A2 Datasheet Preview — Preview of ASMB-MTB1-0A3A2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ASMB-MTB1-0A3A2
Manufacturer	Avago
File Size	463.68 KB
Description	PLCC-4 Tricolor Black Surface LED
Datasheet	ASMB-MTB1-0A3A2-Avago.pdf

ASMB-MTB1-0A3A2 Product details

Description

This family of SMT LEDs are in PLCC-4 package.

Features

Standard PLCC-4 package (Plastic Leaded Chip Carrier).
LED package with diffused silicone encapsulation.
Using AlInGaP and InGaN dice technologies.
Typical viewing angle at 115°.
Compatible with reflow soldering process.
JEDEC MSL 3.
