HLMP-0800

2 mm x 5 mm Rectangular Bicolor LED Lamps

HLMP-0800 Features

* Two color operation

* Three leads with one common cathode

* Option of straight or spread leads configuration Selection Guide Package T-1 3/4 Rectangular Part Number HLMP-4000 HLMP-4000#xxx HLMP-4015 HLMP-0800 HLMP-0805 Color Green/HER Green/Yellow Green/HER Green/

HLMP-0800 General Description

The T-1 3/4 HLMP-40xx and 2 mm by 5 mm rectangular HLMP-08xx are three leaded bicolor light sources designed for a variety of applications where dual state illumination is required in the same package. There are two LED chips, mounted on a central common cathode lead for maximum on-axis viewability..

HLMP-0800 Datasheet (290.51 KB)

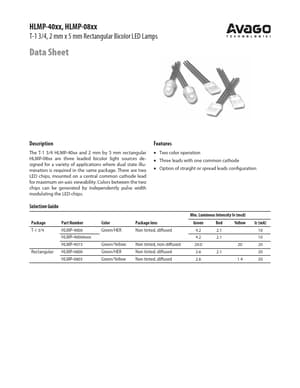

Preview of HLMP-0800 PDF

Datasheet Details

Part number:

HLMP-0800

Manufacturer:

Avago

File Size:

290.51 KB

Description:

2 mm x 5 mm rectangular bicolor led lamps.
