HSMC-C190

(HSMx-C110 - HSMx-C191) High Performance ChipLED

HSMC-C190 Features

* High brightness AlInGaP material

* Small size

* Industry standard footprint

* Diffused optics

* Top emitting or right angle emitting Available in 3 colors (red, orange, amber) Compatible with IR soldering Available in

HSMC-C190 General Description

These chip-type LEDs utilize Aluminum Indium Gallium Phosphide (AlInGaP) material technology. The AlInGaP material has a very high luminous efficiency, capable of producing high light output over a wide range of drive currents. The available colors in this surface mount series are 592 nm Amber, 605 .

HSMC-C190 Datasheet (444.00 KB)

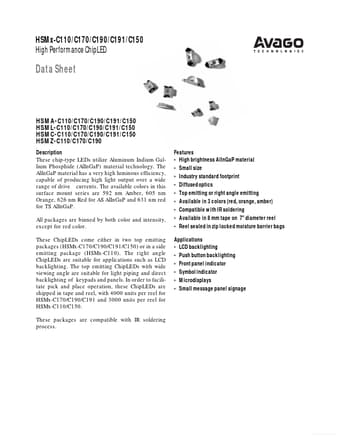

Preview of HSMC-C190 PDF

Datasheet Details

Part number:

HSMC-C190

Manufacturer:

Avago

File Size:

444.00 KB

Description:

(hsmx-c110 - hsmx-c191) high performance chipled.
HSMx-C110/C170/C190/C191/C150 High Performance ChipLED Data Sheet HSMA-C110/C170/C190/C191/C150 HSML-C110/C170/C190/C191/C150 HSMC-C110/C170/C190/C1.
