IQS512, IQS550, Capacitive Controller Platform

ProxSense® IQS550/572/525/512 Capacitive Controller Platform IQS5xx-A000 * Trackpad/Touchscreen Controller Multiple Channel Projected Capacit.

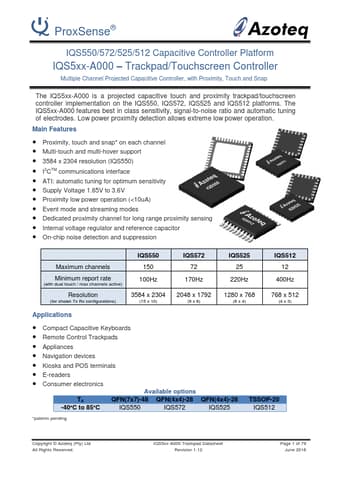

datasheet Preview Page 1 from Datasheet4u.com

IQS550-Azoteq.pdf

IQS512 Datasheet Preview — This datasheet PDF includes multiple part numbers: IQS512, IQS550. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IQS512, IQS550

Manufacturer:

Azoteq

File Size:

4.56 MB

Description:

Capacitive Controller Platform

Note:

This datasheet PDF includes multiple part numbers: IQS512, IQS550.
Please refer to the document for exact specifications by model.

Features

* best in class sensitivity, signal-to-noise ratio and automatic tuning of electrodes. Low power proximity detection allows extreme low power operation. Main Features
* Proximity, touch and snap
* on each channel
* Multi-touch and multi-hover support
* 3584 x 2304 resolution (IQS550)

Applications

* Compact Capacitive Keyboards
* Remote Control Trackpads
* Appliances
* Navigation devices
* Kiosks and POS terminals
* E-readers
* Consumer electronics Available options TA QFN(7x7)-48 QFN(4x4)-28 QFN(4x4)-28 -40°C to 85°C IQS550 IQS572 IQS525
* patents
