IQS550

Capacitive Controller Platform

IQS550 Features

* best in class sensitivity, signal-to-noise ratio and automatic tuning of electrodes. Low power proximity detection allows extreme low power operation. Main Features

* Proximity, touch and snap

* on each channel

* Multi-touch and multi-hover support

* 3584 x 2304 resolution (IQS550)

IQS550 Datasheet (4.56 MB)

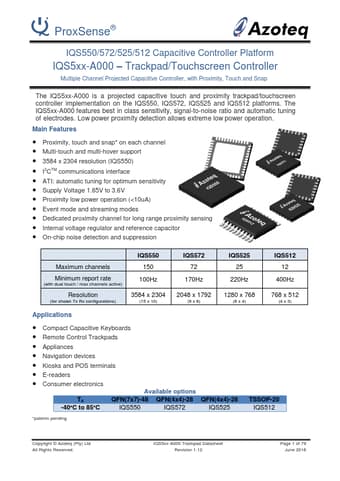

Preview of IQS550 PDF

Datasheet Details

Part number:

IQS550

Manufacturer:

Azoteq

File Size:

4.56 MB

Description:

Capacitive controller platform.
ProxSense® IQS550/572/525/512 Capacitive Controller Platform IQS5xx-A000

* Trackpad/Touchscreen Controller Multiple Channel Projected Capacit.
