IQS572, IQS550 Capacitive Controller Platform

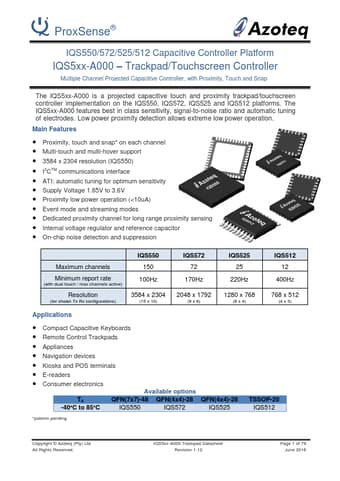

📥 Download Datasheet  Datasheet Preview Page 1

Description

ProxSense® IQS550/572/525/512 Capacitive Controller Platform IQS5xx-A000 * Trackpad/Touchscreen Controller Multiple Channel Projected Capacit.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IQS572, IQS550. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IQS572, IQS550
Manufacturer
Azoteq
File Size
4.56 MB
Datasheet
IQS550-Azoteq.pdf
Description
Capacitive Controller Platform
Note
This datasheet PDF includes multiple part numbers: IQS572, IQS550.
Please refer to the document for exact specifications by model.

Features

* best in class sensitivity, signal-to-noise ratio and automatic tuning of electrodes. Low power proximity detection allows extreme low power operation. Main Features
* Proximity, touch and snap
* on each channel
* Multi-touch and multi-hover support
* 3584 x 2304 resolution (IQS550)

Applications

* Compact Capacitive Keyboards
* Remote Control Trackpads
* Appliances
* Navigation devices
* Kiosks and POS terminals
* E-readers
* Consumer electronics Available options TA QFN(7x7)-48 QFN(4x4)-28 QFN(4x4)-28 -40°C to 85°C IQS550 IQS572 IQS525
* patents
