AP3410B Datasheet, Dc-dc Converter, BCD Semiconductor

1.5mhz synchronous step-down dc-dc converter

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Diodes Incorporated	AP3410B	AP3410BKTR-G1	IC REG BUCK ADJ 1.2A SOT23-5	DigiKey	0	15000 units	$0.57	🛒 Buy Now

📥 Download PDF (428.91 KB)

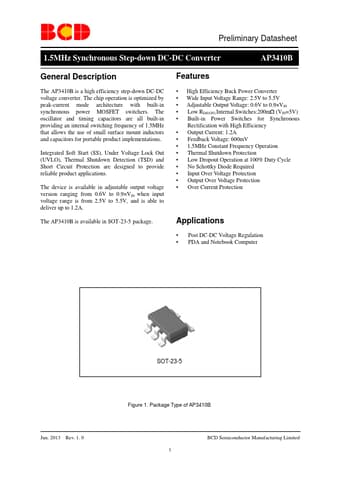

AP3410B Datasheet Preview Page 1 — Preview of AP3410B Datasheet

PDF File Details

Part number:

AP3410B

Manufacturer:

BCD Semiconductor

File Size:

428.91 KB

Download:

📄 Download the AP3410B Datasheet PDF

Description:

1.5mhz synchronous step-down dc-dc converter.
The AP3410B ihigh efficiency step-down DC-DC voltage converter.
The chip operation is optimized by peak-current mode.

✔ AP3410B Features

High Efficiency Buck Power Converter
Wide Input Voltage Range: 2.5V to 5.5V
Adjustable Output Voltage: 0.6V to 0.9×VIN
Low RDS(ON) Internal Switches:200mΩ (VIN=5V

✔ AP3410B Application

The device is available in adjustable output voltage version ranging from 0.6V to 0.9×VIN when input voltag
