AP3417B - 1.4MHz High Efficiency Synchronous DC-DC Buck Converter

AP3417B Description

Data Sheet 1.2A, 1.4MHz High Efficiency Synchronous DC-DC Buck Converter AP3417B General .
The AP3417B is a 1.

AP3417B Features

* Input Voltage Range: 2.5V to 5.5V
* Output Voltage: 0.6V to VIN
* ADJ Output
* Fixed 1.4MHz Frequency
* High Efficiency up to 95%
* Output Current: 1.2A
* Current Mode Control
* 100% Duty Cycle in Dropout
* Built-in Over Curre

AP3417B Applications

* Set-top Box
* Datacom
* Portable Device
* Smart Phone Jan. 2013 Rev. 1. 0 SOT-23-5 Figure 1. Package Type of AP3417B BCD Semiconductor Manufacturing Limited 1 Data Sheet 1.2A, 1.4MHz High Efficiency Synchronous DC-DC Buck Converter AP3417B Pin Configuration K Pac

📥 Download Datasheet

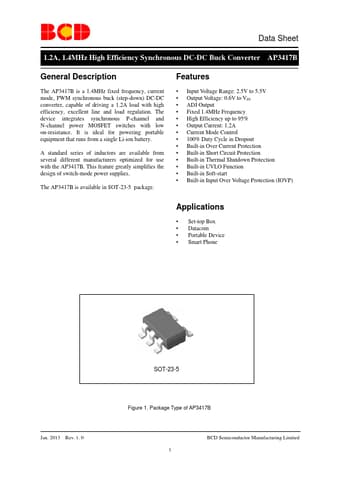

Preview of AP3417B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3417B
Manufacturer
BCD Semiconductor
File Size
450.62 KB
Datasheet
AP3417B-BCDSemiconductor.pdf
Description
1.4MHz High Efficiency Synchronous DC-DC Buck Converter
