AP3406A Datasheet - BCD Semiconductor

AP3406A 1.1MHz 800mA SYNCHRONOUS DC-DC BUCK CONVERTER

The AP3406A is a 1.1MHz fixed frequency, current mode, PWM synchronous buck (step-down) DC-DC converter, capable of driving a 800mA load with high efficiency, excellent line and load regulation. The device integrates a main switch and a synchronous switch without an external Schottky diode. It is id.

AP3406A Features

* High Efficiency: up to 95% Output Current: 800mA Input Voltage Range: 2.5V to 5.5V Fixed 1.1MHz Frequency Current Mode Control 100% Duty Cycle in Dropout Built-in Short Circuit Protection Built-in The

AP3406A-BCDSemiconductor.pdf

Preview of AP3406A PDF

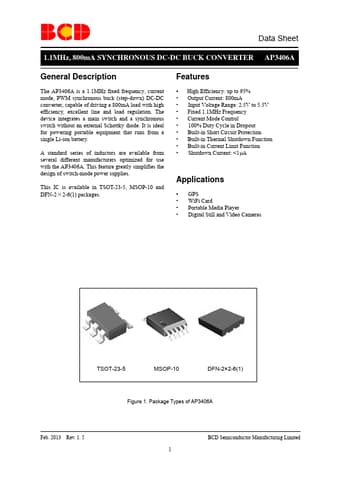

AP3406A Datasheet Preview Page 2 AP3406A Datasheet Preview Page 3

Datasheet Details

Part number:

AP3406A

Manufacturer:

BCD Semiconductor

File Size:

539.62 KB

Description:

1.1mhz 800ma synchronous dc-dc buck converter.
