BL6306 - 2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier

BELLING

📥 Download Datasheet

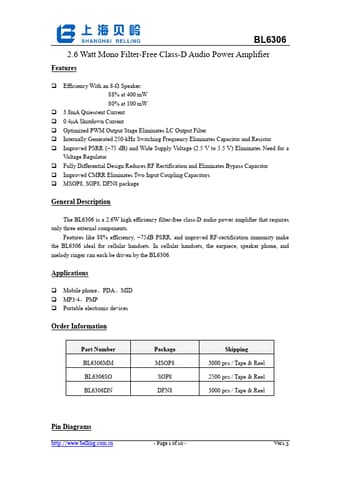

BL6306 Datasheet Preview — Preview of BL6306 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BL6306
Manufacturer: BELLING
File Size: 351.04 KB
Datasheet: BL6306-BELLING.pdf
Description: 2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier

BL6306 Product details

Description

The BL6306 is a 2.6W high efficiency filter-free class-D audio power amplifier that requires only three external components..

Features

 Efficiency With an 8-Ω Speaker: 88% at 400 mW 80% at 100 mW  3.8mA Quiescent Current  0.4μA Shutdown Current  Optimized PWM Output Stage Eliminates LC Output Filter  Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor  Improved PSRR (.
75 dB) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates Need for a Voltage Regulator  Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor  Improved CMRR Eliminates Two Input Coupling.
