BL6305 - 2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier

BL6305 Description

BL6305 2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier .
The BL6305 is a 2.

BL6305 Features

* Efficiency With an 8-Ω Speaker: 88% at 400 mW 80% at 100 mW 2.1mA Quiescent Current 0.4µA Shutdown Current Optimized PWM Output Stage Eliminates LC Output Filter Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor Improved PSRR (
* 75 dB) and Wide Supply Voltage

BL6305 Applications

* Mobile phone、PDA MP3/4、PMP Portable electronic devices Order Information Part Number BL6305MM BL6305DN BL6305SO Pin Diagrams Package MSOP8 DFN8 SOP8 Shipping 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 2500 pcs / Tape & Reel http://www. belling. com. cn - Page 1 of 9 - Ver1.2 BL6305 Pin Descr

📥 Download Datasheet

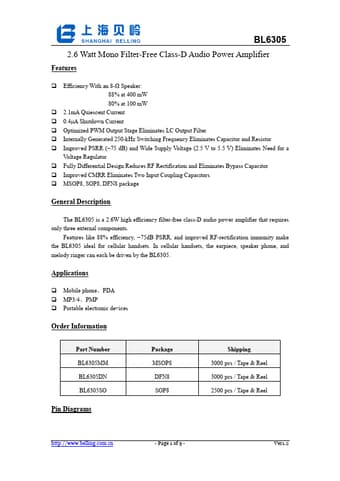

Preview of BL6305 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BL6305
Manufacturer
BELLING
File Size
253.63 KB
Datasheet
BL6305-BELLING.pdf
Description
2.6 Watt Mono Filter-Free Class-D Audio Power Amplifier
