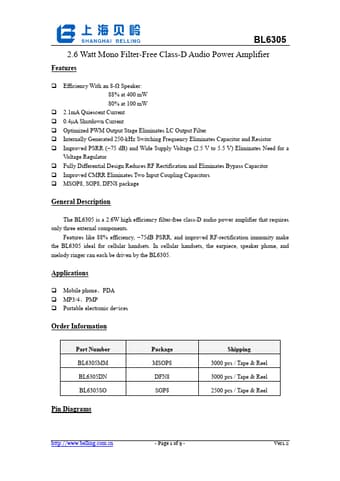

BL6305SO Datasheet, Amplifier, BELLING

BL6305SO Features

• Amplifier Efficiency With an 8-Ω Speaker: 88% at 400 mW 80% at 100 mW 2.1mA Quiescent Current 0.4µA Shutdown Current Optimized PWM Output Stage Eliminates LC Output Filter Internally Generated 25

PDF File Details

Part number:

BL6305SO

Manufacturer:

BELLING

File Size:

253.63kb

Download:

📄 Datasheet

Description:

2.6 watt mono filter-free class-d audio power amplifier. The BL6305 is a 2.6W high efficiency filter-free class-D audio power amplifier that requires only three external components. Features

BL6305SO Application

• Applications Mobile phone、PDA MP3/4、PMP Portable electronic devices Order Information Part Number BL6305MM BL6305DN BL6305SO Pin Diagrams Package
