BL8095 Datasheet, Sot23-6, BELLING

BL8095 Features

• Sot23-6
• Adjustable Output Voltage, Vfb=0.810V
• Output current is up to 1.2A
• Range of operation input voltage: 4-24V
• Input voltage UVLO: 3.7V (voltage decr

PDF File Details

Part number:

BL8095

Manufacturer:

BELLING

File Size:

628.35kb

Download:

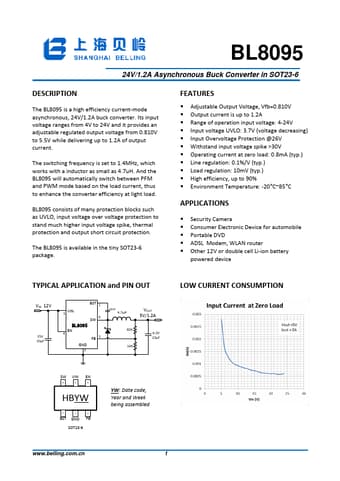

📄 Datasheet

Description:

24v/1.2a asynchronous buck converter in sot23-6. The BL8095 is a high efficiency current-mode asynchronous, 24V/1.2A buck converter. Its input voltage ranges from 4V to 24V and it pr

BL8095 Application

• Applications
• Security Camera
• Consumer Electronic Device for automobile
• Portable DVD
• ADSL Modem, WLAN router
