BL8091 18V (30V spike) 2A Synchronous PFM/PWM Buck Converter

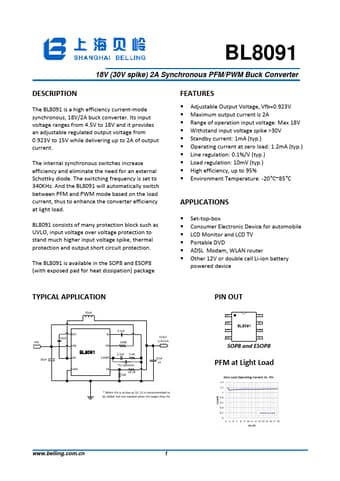

📥 Download Datasheet  Datasheet Preview Page 1

Description

BL8091 18V (30V spike) 2A Synchronous PFM/PWM Buck Converter .
The BL8091 is a high efficiency current-mode synchronous, 18V/2A buck converter.

📥 Download Datasheet

Preview of BL8091 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BL8091
Manufacturer
SHANGHAI BELLING
File Size
924.33 KB
Datasheet
BL8091-SHANGHAIBELLING.pdf
Description
18V (30V spike) 2A Synchronous PFM/PWM Buck Converter

Features

* Adjustable Output Voltage, Vfb=0.923V
* Maximum output current is 2A
* Range of operation input voltage: Max 18V
* Withstand input voltage spike >30V
* Standby current: 1mA (typ. )
* Operating current at zero load: 1.2mA (typ. )
* Line regulation: 0.1%/V (typ. )
* Load

Applications

* Set-top-box
* Consumer Electronic Device for automobile
* LCD Monitor and LCD TV
* Portable DVD
* ADSL Modem, WLAN router
* Other 12V or double cell Li-ion battery powered device TYPICAL APPLICATION 10uH VIN 10uF BST 10nF SS VIN EN BLL8C0293121 SW COMP GND FB 0.1uF 1
