BL8092 18V (30V spike)2.5A Synchronous PFM/PWM Buck Converter

📥 Download Datasheet  Datasheet Preview Page 1

Description

BL8092 18V (30V spike)2.5A Synchronous PFM/PWM Buck Converter .
The BL8092 is a high efficiency current-mode synchronous, 18V/2.

📥 Download Datasheet

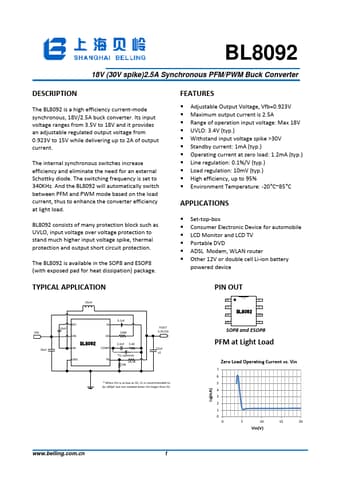

Preview of BL8092 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BL8092
Manufacturer
SHANGHAI BELLING
File Size
566.23 KB
Datasheet
BL8092-SHANGHAIBELLING.pdf
Description
18V (30V spike)2.5A Synchronous PFM/PWM Buck Converter

Features

* Adjustable Output Voltage, Vfb=0.923V
* Maximum output current is 2.5A
* Range of operation input voltage: Max 18V
* UVLO: 3.4V (typ. )
* Withstand input voltage spike >30V
* Standby current: 1mA (typ. )
* Operating current at zero load: 1.2mA (typ. )
* Line regulation

Applications

* Set-top-box
* Consumer Electronic Device for automobile
* LCD Monitor and LCD TV
* Portable DVD
* ADSL Modem, WLAN router
* Other 12V or double cell Li-ion battery powered device TYPICAL APPLICATION 10uH VIN 10uF BST 10nF SS VIN EN BLLCC82203392221 SW COMP GND FB 0.1
