BCP120C - HIGH EFFICIENCY HETEROJUNCTION POWER FET

Datasheet Summary

Features

30.5 dBm Typical Output Power.
11 dB Typical Gain @ 12 GHz.
0.25 X 1200 Micron Recessed Gate.

BEREX

📥 Download Datasheet

Datasheet Details

Part number	BCP120C
Manufacturer	BEREX
File Size	354.60 KB
Description	HIGH EFFICIENCY HETEROJUNCTION POWER FET
Datasheet	BCP120C Datasheet
Additional preview pages of the BCP120C datasheet.

📁 Similar Datasheet

BCP1213 - Epitaxial Planar Transistor (SeCoS)
BCP156 - Planar High Performance Transistor (SeCoS)
BCP157 - PNP Epitaxial Planar Transistor (SeCoS)
BCP1616A - NPN Epitaxial Planar Transistor (SeCoS)
BCP1766 - NPN Epitaxial Planar Transistor (SeCoS)
BCP1898 - NPN Epitaxial Planar Transistor (SeCoS)
BCP194 - Planar Medium Power Transistor (SeCoS)
BCP195 - Medium Power Transistor (SeCoS)
BCP2098 - Epitaxial Planar Transistor (SeCoS)
BCP28 - PNP Silicon Darlington Transistors (Infineon)

Other Datasheets by BEREX

BCP020C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET
BCP030C-70 - HIGH EFFICIENCY HETEROJUNCTION POWER FET

Full PDF Text Transcription

Click to expand full text

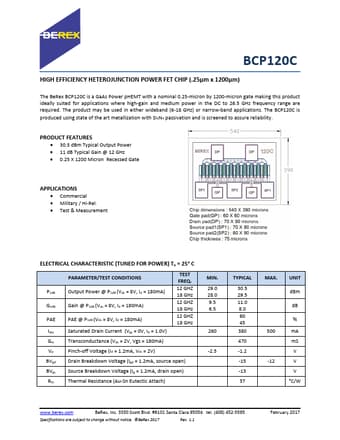

BCP120C HIGH EFFICIENCY HETEROJUNCTION POWER FET CHIP (.25µm x 1200µm) The BeRex BCP120C is a GaAs Power pHEMT with a nominal 0.25-micron by 1200-micron gate making this product ideally suited for applications where high-gain and medium power in the DC to 26.5 GHz frequency range are required. The product may be used in either wideband (6-18 GHz) or narrow-band applications. The BCP120C is produced using state of the art metallization with SI3N4 passivation and is screened to assure reliability. PRODUCT FEATURES • 30.5 dBm Typical Output Power • 11 dB Typical Gain @ 12 GHz • 0.25 X 1200 Micron Recessed Gate APPLICATIONS • Commercial • Military / Hi-Rel. • Test & Measurement ELECTRICAL CHARACTERISTIC (TUNED FOR POWER) Ta = 25° C PARAMETER/TEST CONDITIONS TEST FREQ.
