2SC1573A, 2SC1573 Silicon NPN transistor

2SC1573A Description

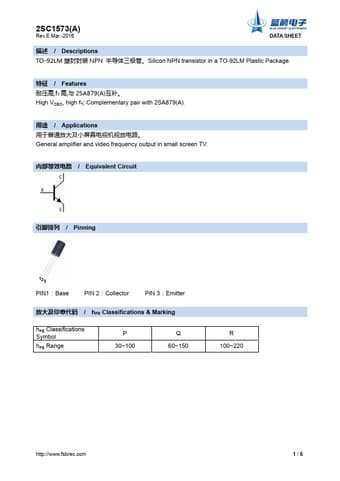

2SC1573(A) Rev.E Mar.-2016 DATA SHEET / .
TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.

2SC1573A Applications

* 。 General amplifier and video frequency output in small screen TV. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range P 30~100 Q 60~150 R 100~220 http://www. fsbrec. com 1/6 2SC1573(A) Rev. E M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC1573A, 2SC1573. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC1573A, 2SC1573
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
632.08 KB
Datasheet
2SC1573-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
Note
This datasheet PDF includes multiple part numbers: 2SC1573A, 2SC1573.
Please refer to the document for exact specifications by model.
