2SC1573B - Silicon NPN Transistor

Product Overview

Panasonic Semiconductor

Part number	2SC1573B
Manufacturer	Panasonic Semiconductor
File Size	46.37 KB
Description	Silicon NPN Transistor
Datasheet	2SC1573B Datasheet

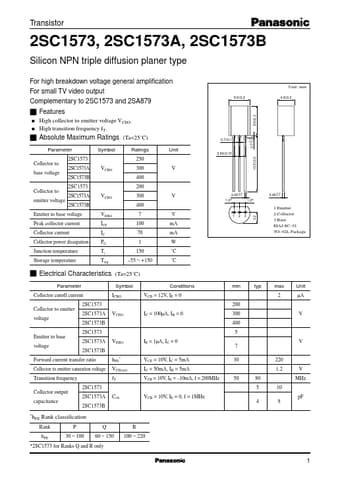

Additional preview pages of the 2SC1573B datasheet.

q High collector to emitter voltage VCEO. q High transition frequency fT. s Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit 2SC1573 250 Collector to 2SC1573A VCBO 300 V base voltage 2SC1573B 400 2SC1573 200 Collector to 2SC1573A VCEO 300 V emitter voltage 2SC1573B 400 Emitter to base voltage VEBO 7 V Peak collector current ICP 100 mA Collector current IC 70 mA Collector power dissipation PC 1 W Junction temperature Tj 150 ˚C Storage temp.
