2SC1567 - Silicon NPN Transistor

2SC1567 Description

Power Transistors 2SC1567, 2SC1567A Silicon NPN epitaxial planar type For low-frequency high power driver Complementary to 2SA0794, 2SA0794A φ 3.16±.

2SC1567 Features

* 3.05±0.1
* High collector-emitter voltage (Base open) VCEO
* Optimum for the driver stage of low-frequency and 40 W to 100 W output amplifier
* TO-126B package which requires no insulation plate for installation to the heat sink 1.9±0.1 16.0±1.0 /
* Absolute Maximum

📥 Download Datasheet

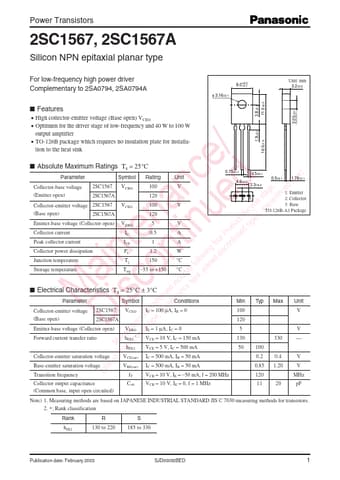

Preview of 2SC1567 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC1567
Manufacturer
Panasonic Semiconductor
File Size
251.84 KB
Datasheet
2SC1567_PanasonicSemiconductor.pdf
Description
Silicon NPN Transistor
