2SC1507 - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 300V(Min) Low Collector-Emitter Saturation Voltage- : VCE(sat)= 2.0V(Max) @IC= 50mA 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in line

📥 Download Datasheet

Datasheet preview – 2SC1507

Datasheet Details

Part number 2SC1507
Manufacturer INCHANGE
File Size 183.11 KB
Description NPN Transistor
Datasheet download datasheet 2SC1507 Datasheet
Additional preview pages of the 2SC1507 datasheet.

📁 Similar Datasheet

  • 2SC1507 - NPN Silicon Transistor (NEC)
  • 2SC1501 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1504 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1505 - Silicon Power Transistor (NEC)
  • 2SC1506 - NPN Silicon Transistor (NEC)
  • 2SC1509 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC1514 - Silicon NPN Triple Diffused Transistor (Hitachi Semiconductor)
  • 2SC1514 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1515 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC1515K - Silicon NPN Transistor (Hitachi Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

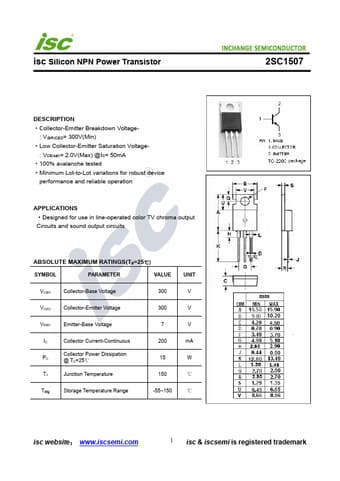

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1507 DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 300V(Min) ·Low Collector-Emitter Saturation Voltage- : VCE(sat)= 2.0V(Max) @IC= 50mA ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in line-operated color TV chroma output Circuits and sound output circuits ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 300 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 200 mA 15 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website： www.
