2SC1516 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC1516

Manufacturer:

INCHANGE

File Size:

183.22kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • High Collector Current IC= 1.5A
  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= 35V(Min)
  • Good Linearity o

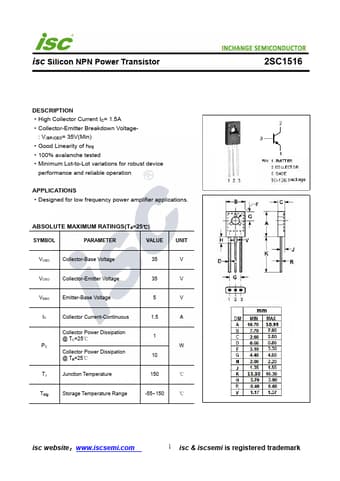

  • Datasheet Preview: 2SC1516 📥 Download PDF (183.22kb)
    Page 2 of 2SC1516

    2SC1516 Application

    • Applications
    • Designed for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VC
