2SC1504 - NPN Transistor

2SC1504 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1504 .
With TO-66 Package. Low collector saturation voltage. Minimum Lot-to-Lot variations for robust device performance and reliable operation.

2SC1504 Applications

* Designed for switching and wide-band amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 300 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Dis

📥 Download Datasheet

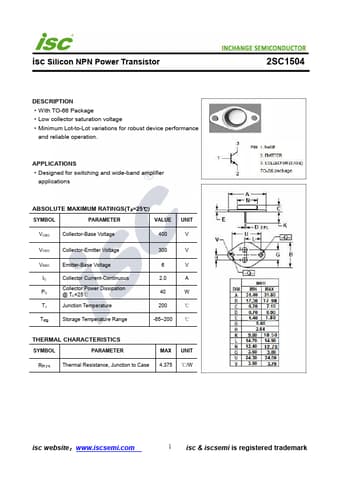

Preview of 2SC1504 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1504
Manufacturer
INCHANGE
File Size
175.65 KB
Datasheet
2SC1504-INCHANGE.pdf
Description
NPN Transistor
