* q High collector to emitter voltage VCEO. q High transition frequency fT. s Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit 2SC1573 250 Collector to 2SC1573A VCBO 300 V base voltage 2SC1573B 400 2SC1573 200 Collector to 2SC1573A VCEO 300 V emitter voltage 2SC157
2SC1573
Panasonic Semiconductor
46.37 KB
Silicon npn transistor.
Transistor

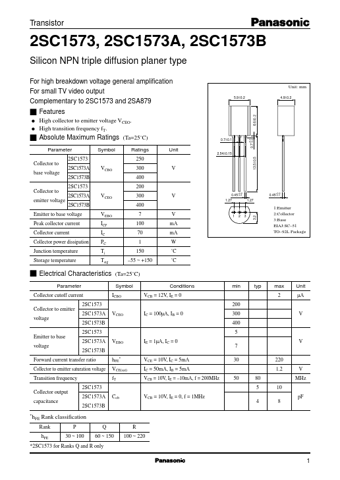

2SC1573, 2SC1573A, 2SC1573B
Silicon NPN triple diffusion planer type
For high breakdown voltage general amplification
For small TV video o.
