2SC1573A

Silicon NPN Transistor

2SC1573A Features

* q High collector to emitter voltage VCEO. q High transition frequency fT. s Absolute Maximum Ratings (Ta=25˚C) Parameter Symbol Ratings Unit 2SC1573 250 Collector to 2SC1573A VCBO 300 V base voltage 2SC1573B 400 2SC1573 200 Collector to 2SC1573A VCEO 300 V emitter voltage 2SC157

2SC1573A Datasheet (46.37 KB)

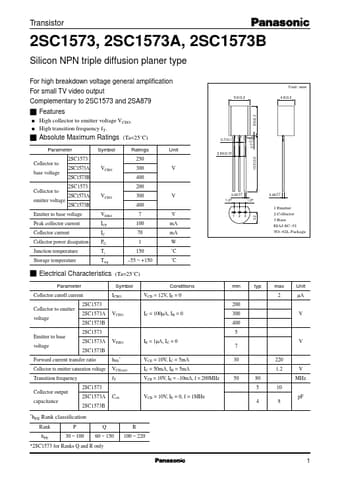

Preview of 2SC1573A PDF

Datasheet Details

Part number:

2SC1573A

Manufacturer:

Panasonic Semiconductor

File Size:

46.37 KB

Description:

Silicon npn transistor.
Transistor 2SC1573, 2SC1573A, 2SC1573B Silicon NPN triple diffusion planer type For high breakdown voltage general amplification For small TV video o.
