2SC1568 - Silicon NPN Transistor

Product Overview

Panasonic Semiconductor

Part number	2SC1568
Manufacturer	Panasonic Semiconductor
File Size	252.47 KB
Description	Silicon NPN Transistor
Datasheet	2SC1568 Datasheet

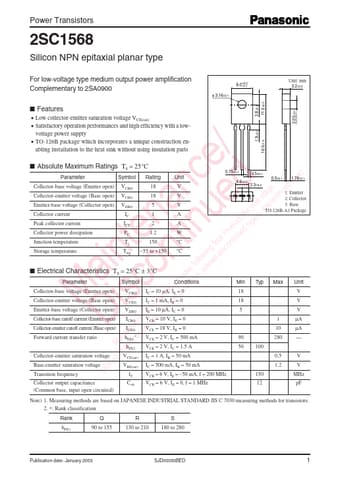

Additional preview pages of the 2SC1568 datasheet.

05±0.1.
Low collector-emitter saturation voltage VCE(sat).
Satisfactory operation performances and high efficiency with a lowvoltage power supply.
TO-126B package which incorporates a unique construction enabling installation to the heat sink without using insulation parts 1.9±0.1 16.0±1.0 /.
Absolute Maximum Ratings Ta = 25°C e e) Parameter Symbol Rating Unit c e. d typ Collector-base voltage (Emitter open) VCBO 18 V n d stag tinue Collector-emitter vo.
