2SC3790 Datasheet, Transistor, BLUE ROCKET ELECTRONICS

2SC3790 Features

• Transistor ，，。 High breakdown voltage, small reverse transfer capacitance and excellent high frequency characteristic. / Applications 。 High-definition CRT display video output applications.

PDF File Details

Part number:

2SC3790

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

1.11MB

Download:

📄 Datasheet

Description:

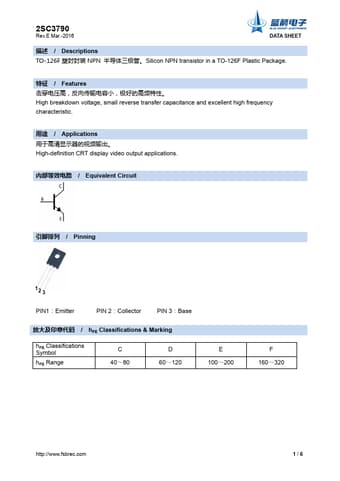

Silicon npn transistor. TO-126F NPN 。Silicon NPN transistor in a TO-126F Plastic Package.  / Features ，，。 High breakdown voltage, small reverse transf

2SC3790 Application

• Applications 。 High-definition CRT display video output applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN
