Part number:
2SD2159
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
604.49 KB
Description:
Silicon npn transistor.

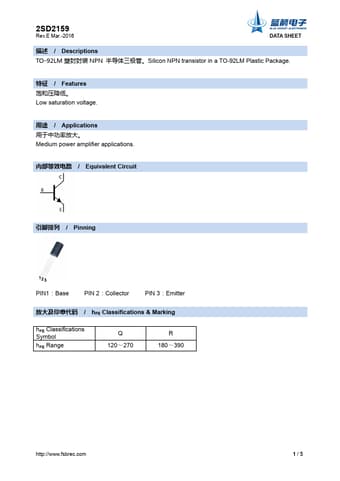

* 。 Low saturation voltage. / Applications 。 Medium power amplifier applications. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 120～270 R 180～390 http://www.fsbrec.com 1/5 2SD2159 Rev
2SD2159
BLUE ROCKET ELECTRONICS
604.49 KB
Silicon npn transistor.
