2SD2142K - Silicon NPN transistor

2SD2142K Description

2SD2142K Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

2SD2142K Applications

* 。 High-gain amplifier transistor. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Range Marking >5000 HR1M http://www. fsbrec. com 1/6 2SD2142K Rev. E Mar. -2016 / Absolute Maximum Ratings(Ta=25℃) Parameter Collector to B

📥 Download Datasheet

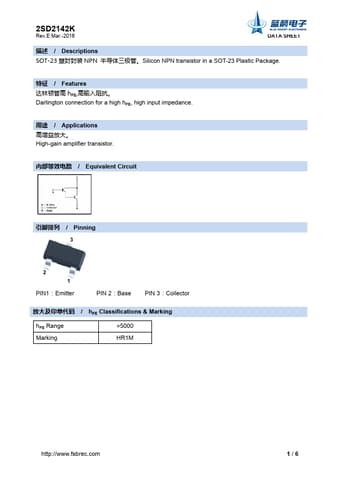

Preview of 2SD2142K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD2142K
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
0.97 MB
Datasheet
2SD2142K-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
