Part number:
KSC2223
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
836.95 KB
Description:
Silicon npn transistor.
Image | Manufacturer | B2B MPN | Description | Distributor | Stock | Quantity | Price | Buy Now |
---|---|---|---|---|---|---|---|---|
![]() |
onsemi | KSC2223OMTF | TRANS NPN 20V 0.02A SOT-23-3 | DigiKey | 0 | 0 |
$0
|
🛒 Buy Now |
KSC2223
BLUE ROCKET ELECTRONICS
836.95 KB
Silicon npn transistor.

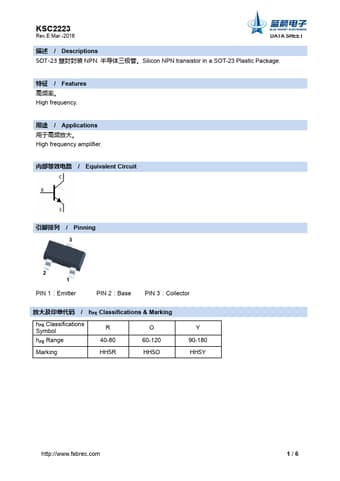

* 。 High frequency. / Applications 。 High frequency amplifier. / Equivalent Circuit / Pinning 3 2 1 PIN 1:Emitter PIN 2:Base PIN 3:Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 40-80 O 60-120 Marking HH5R HH5O Y 90-180 HH5Y http://www.fsbrec.c
