KSC2328A - Silicon NPN transistor

KSC2328A Description

KSC2328A Rev.E Mar.-2016 DATA SHEET / .
TO-92LM NPN 。Silicon NPN transistor in a TO-92LM Plastic Package.

KSC2328A Applications

* 。 Audio frequency amplifier applications. / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 100～200 Y 160～320 http://www. fsbrec. com 1/6 KSC2328A Rev. E Mar. -2016 / Absolute Maximum Rating

📥 Download Datasheet

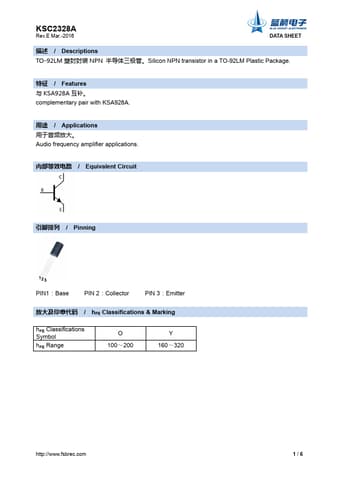

Preview of KSC2328A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSC2328A
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
878.06 KB
Datasheet
KSC2328A-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
