LM317S

Voltage Regulator

LM317S Features

* , 1.5A, 1.2~37V 。 3-Terminal regulators ,output current in excess of 1.5 A, output voltage adjustable over a 1.2-37V. / Applications 。 Voltage Regulator. / Equivalent Circuit or Application Circuit / Pinning 12 3 PIN1:ADJ 4 PIN 2,4:OUT PIN 3:IN / Marking 。See marking instructions. http

LM317S Datasheet (1.04 MB)

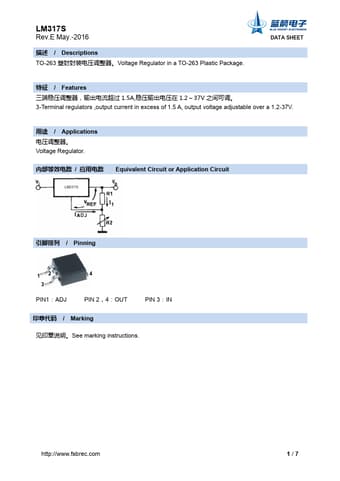

Preview of LM317S PDF

Datasheet Details

Part number:

LM317S

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

1.04 MB

Description:

Voltage regulator.
