LV20150FCT - Schottky Diode

LV20150FCT Description

LV20150FCT Rev.F Mar.-2016 / .
TO-220F  。 Schottky Diode in a TO-220F Plastic Package.

LV20150FCT Applications

* ，，，OR-ing ，DC-DC 。 For use in high frequency inverters, switching power supplies, freewheeling diodes, OR-ing diode, dc-to-dc converters and reverse battery protection. / Equivalent Circuit / Pinning 123 PIN1：Anode PIN 2：Cathode PIN 3：Anode / hFE Classifications & Marking 。See Marking Inst

📥 Download Datasheet

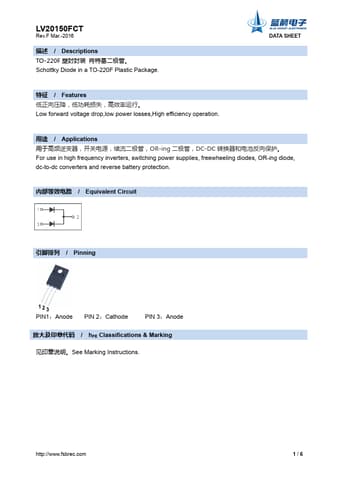

Preview of LV20150FCT PDF
datasheet Preview Page 2 datasheet Preview Page 3
