MB120F - Surface Mount Schottky Bridge

This page provides the datasheet information for the MB120F, a member of the MB14F Surface Mount Schottky Bridge family.

Datasheet Summary

Description

1.0A ， MBF 。 1.0A Surface Mount Schottky Bridge，MBF thin package。 DATA SHEET /

Features

  • ，：40V~200V，：1.0A，。。 High Surge Current Capability,Reverse Voltage:40to200V,Forward Current：1.0 A,Designed for Surface Mount.

📥 Download Datasheet

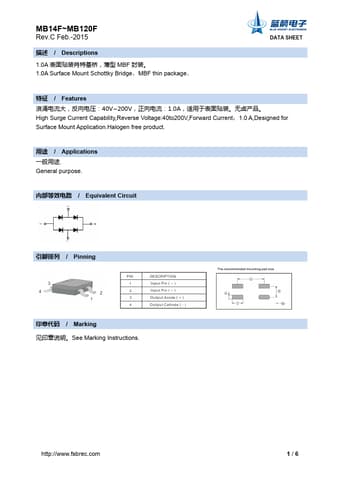

Datasheet preview – MB120F

Datasheet Details

Part number MB120F
Manufacturer BLUE ROCKET ELECTRONICS
File Size 913.03 KB
Description Surface Mount Schottky Bridge
Datasheet download datasheet MB120F Datasheet
