MB120S - Surface Mount Schottky Bridge Rectifier

This page provides the datasheet information for the MB120S, a member of the MB12S Surface Mount Schottky Bridge Rectifier family.

Datasheet Summary

Features

  • ‧Schottky Barrier Chip ‧Low Power Loss,High Efficiency ‧Ideally Suited for Automatic Assembly ‧Surge Overload Rating to 30A Peak ‧Plastic Case Material has UL Flammability Classification Rating 94V-0 Ordering Information Part No. MB12S THRU MB120S MB12S THRU MB120S-H Remark General Halogen Free Package MBS Mechanical Data ‧Case: MBS, molded plastic ‧Terminals: plated leads solderable per MIL-STD-202, Method 208 ‧Polarity: as marked on case ‧Mounting position: Any ‧Marking: type number ‧Lead.

📥 Download Datasheet

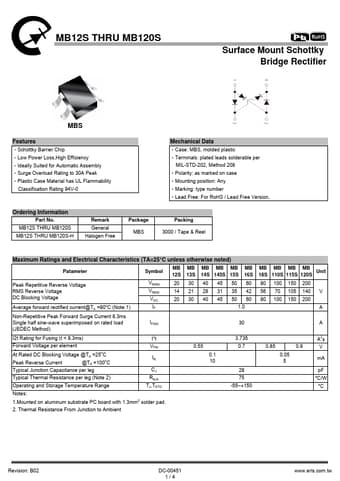

Datasheet preview – MB120S
