MJE13003DK7 Silicon NPN transistor

MJE13003DK7 Description

MJE13003DK7 Rev.E Mar.-2016 DATA SHEET / .
TO-220 NPN 。Silicon NPN transistor in a TO-220 Plastic Package.

MJE13003DK7 Applications

* 、、。 High frequency electronic lighting ballast applications,converters, inverters switching regulators, etc . / Equivalent Circuit / Pinning 123 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions. http://www. fsbrec. com 1/6 MJE13003DK7 Rev. E

📥 Download Datasheet

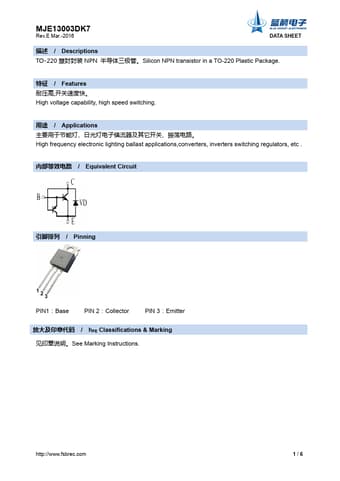

Preview of MJE13003DK7 PDF
datasheet Preview Page 2 datasheet Preview Page 3
