BP101WX1-206 - TFT LCD

Product Overview

BOE

BP101WX1-206 TFT LCD by BOE - Datasheet Preview — Datasheet preview – BP101WX1-206

Datasheet Details

Part number	BP101WX1-206
Manufacturer	BOE
File Size	1.33 MB
Description	TFT LCD
Datasheet	BP101WX1-206 Datasheet
Additional preview pages of the BP101WX1-206 datasheet.

Product details

Description

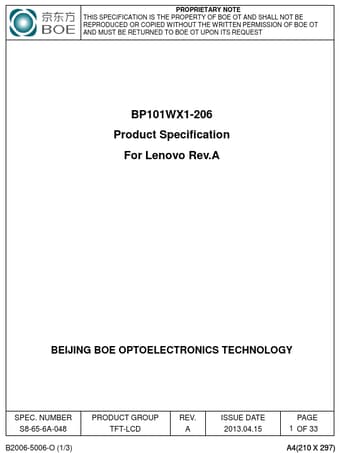

OF CHANGES Initial Release Change the drawings of outline (Page 29&30) DATE 2012.10.22. 2013.03.22 PREPARED S.N Chen S.N Chen SPEC.NUMBER S8-65-6A-048 B2006-5006-O (2/3) SPEC TITLE BP101WX1-206 Product Specification PAGE 2 OF 33 A4(210 X 297) PRODUCT GROUP TFT LCD PRODUCT REV O ISSUE DATE 2013.04.15 Contents No.Items 1.0 General Description 2.0 Absolute Maximum ratings 3.0 Electrical specifications.4.0 Optical specifications.5.0 Interface Connection 6.0 Signal Timing Specification 7

Features

1 Channel LVDS Interface with 1 pixel / clock.
Thin and light weight.
Display 16.7M colors (Hi FRC).
High luminance and contrast ratio, low reflection and wide viewing angle.
DE (Data Enable) signal mode.
3.3V for Logic Power and 3.7V for LED Back Light Power.
RoHS Compliant SPEC. NUMBER S8-65-6A-048 B2006-5006-O (3/3) SPEC TITLE BP101WX1-206 Product Specification PAGE 4 OF 33 A4(210 X 297).
