BM9165 Datasheet - BOOKLY MICRO

BM9165, Ultra Low Dropout 2A CMOS LDO

BOOKLY MICRO BM9165 Ultra Low Dropout 2A CMOS LDO General .
Features The BM9165 series are high performance linear voltage regulators that provide ultra low-dropout voltage, high output z 300mV Dropout @ 2A.

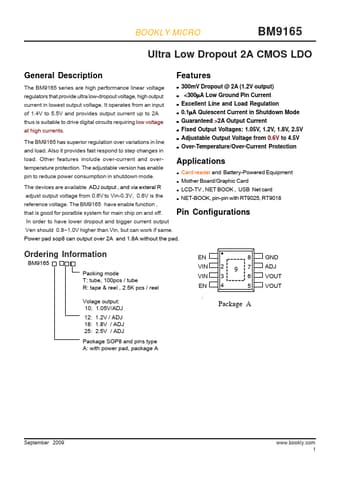

datasheet Preview Page 1 from Datasheet4u.com

BM9165-BOOKLYMICRO.pdf

BM9165 Datasheet Preview — Preview of BM9165 PDF

Datasheet Details

Part number:

BM9165

Manufacturer:

BOOKLY MICRO

File Size:

453.37 KB

Description:

Ultra Low Dropout 2A CMOS LDO

Features

* The BM9165 series are high performance linear voltage regulators that provide ultra low-dropout voltage, high output z 300mV Dropout @ 2A (1.2V output) z

Applications

* z Card reader and Battery-Powered Equipment z Mother Board/Graphic Card z LCD-TV , NET BOOK , USB Net card z NET-BOOK, pin-pin with RT9025, RT9018 Pin Configurations In order to have lower dropout and bigger current output Ven should 0.8~1.0V higher than Vin, but can work if same. (SOP8 with pad)
