BM9209, 300mA CMOS LDO

BM9209 300mA CMOS LDO WITH ENABLE GENERAL .
FEATURES The BM9209 is the improvement version of CM2838 in Iq , in dropout , also in PSRR for portable wireless products.

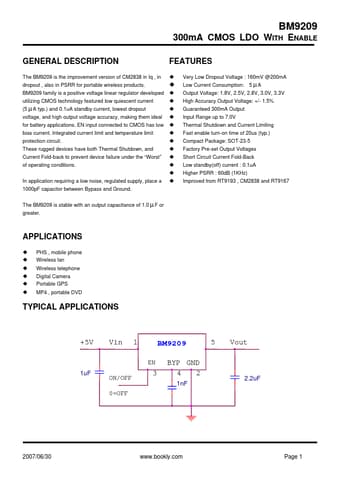

datasheet Preview Page 1 from Datasheet4u.com

BM9209-BOOKLY.pdf

BM9209 Datasheet Preview — Preview of BM9209 PDF

Datasheet Details

Part number:

BM9209

Manufacturer:

BOOKLY

File Size:

187.50 KB

Description:

300mA CMOS LDO

Features

* The BM9209 is the improvement version of CM2838 in Iq , in dropout , also in PSRR for portable wireless products. BM9209 family is a positive voltage linear regulator developed utilizing CMOS technology featured low quiescent current (5 µ A typ. ) and 0.1uA standby current, lowest dropout voltage, a

Applications

* EN input connected to CMOS has low bias current. Integrated current limit and temperature limit protection circuit. These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the “Worst” of operating conditions. In application requiring a low noise, regul
