BM92A30MWV-Z - USB Type-C Power Delivery Controller

ROHM

📥 Download Datasheet

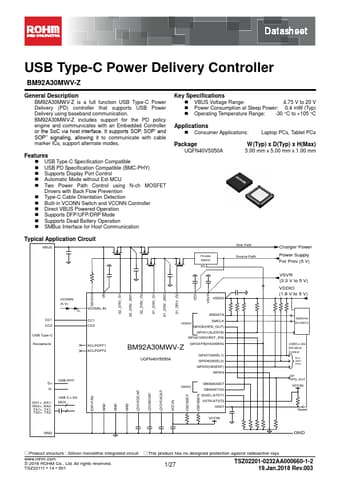

BM92A30MWV-Z Datasheet Preview — Preview of BM92A30MWV-Z PDF

Datasheet Details

Part number: BM92A30MWV-Z
Manufacturer: ROHM ↗
File Size: 1.91 MB
Datasheet: BM92A30MWV-Z-ROHM.pdf
Description: USB Type-C Power Delivery Controller

BM92A30MWV-Z Product details

Description

BM92A30MWV-Z is a full function USB Type-C Power Delivery (PD) controller that supports USB Power Delivery using baseband communication.BM92A30MWV-Z includes support for the PD policy engine and communicates with an Embedded Controller or the SoC via host interface.It supports SOP, SOP’ and SOP’’ signaling, allowing it to communicate with cable marker ICs, support alternate modes.

Features

USB Type-C Specification Compatible.
USB PD Specification Compatible (BMC-PHY).
Supports Display Port Control.
Automatic Mode without Ext-MCU.
Two Power Path Control using N-ch MOSFET Drivers with Back Flow Prevention.
Type-C Cable Orientation Detection.
Built-in VCONN Switch and VCONN Controller.
Direct VBUS Powered Operation.
Supports DFP/UFP/DRP Mode.
Supports Dead Battery Operation.
SMBus Interface for Host Communication Key Specificat.
