BM92A12MWV-Z Datasheet - ROHM

BM92A12MWV-Z, USB Type-C Power Delivery Controller

Datasheet USB Type-C Power Delivery Controller BM92A12MWV-Z General .
BM92A12 is a full function USB Type-C Power Delivery (PD) controller that supports USB Power Delivery using base-band communication.

datasheet Preview Page 1 from Datasheet4u.com

BM92A12MWV-Z-ROHM.pdf

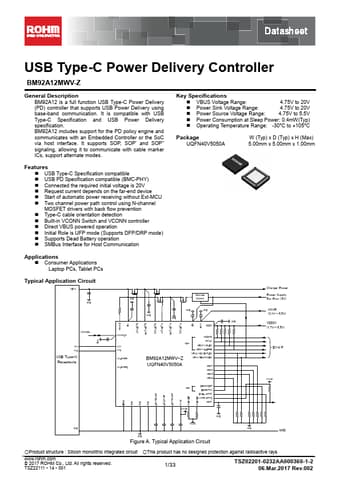

BM92A12MWV-Z Datasheet Preview — Preview of BM92A12MWV-Z PDF

Datasheet Details

Part number:

BM92A12MWV-Z

Manufacturer:

ROHM ↗

File Size:

1.68 MB

Description:

USB Type-C Power Delivery Controller

Features

* USB Type-C Specification compatible
* USB PD Specification compatible (BMC-PHY)
* Connected the required initial voltage is 20V
* Request current depends on the far-end device
* Start of automatic power receiving without Ext-MCU
* Two channel power path control using N-chan

Applications

* Consumer Applications Laptop PCs, Tablet PCs Typical Application Circuit VBUS GND VCONN CC1 CC2 USB Type-C Receptacle GND VSVR VEX S1_DRV_G2 S1_DRV_SRC S1_DRV_G1 S2_DRV_G2 S2_DRV_SRC S2_DRV_G1 VB DSCHG GND EPAD GND GND GND LDO15DCAP LDO28CAP LDO15ACAP VCCIN CSENSEP CSENSEN GND VCONN_IN CC1
