BM92A20MWV - USB Type-C Power Delivery Controller

ROHM

📥 Download Datasheet

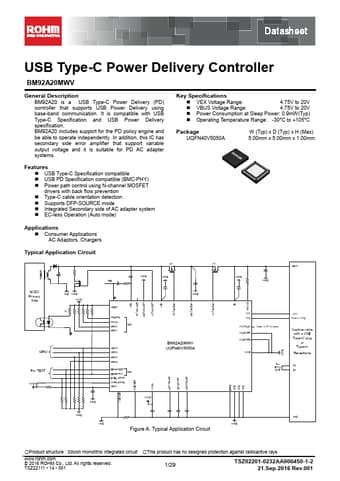

BM92A20MWV Datasheet Preview — Preview of BM92A20MWV PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BM92A20MWV
Manufacturer: ROHM ↗
File Size: 1.23 MB
Datasheet: BM92A20MWV-ROHM.pdf
Description: USB Type-C Power Delivery Controller

BM92A20MWV Product details

Description

BM92A20 is a USB Type-C Power Delivery (PD) controller that supports USB Power Delivery using base-band communication.

Features

USB Type-C Specification compatible.
USB PD Specification compatible (BMC-PHY).
Power path control using N-channel MOSFET drivers with back flow prevention.
Type-C cable orientation detection.
Supports DFP-SOURCE mode.
Integrated Secondary side of AC adapter system.
EC-less Operation (Auto mode) Key Specifications.
VEX Voltage Range: 4.75V to 20V.
VBUS Voltage Range: 4.75V to 20V.
Power Consumption at Sleep Power: 0.9mW(Typ).
Operati.
