BM9166, 250mA CMOS LDO

BM9166 250mA CMOS LDO GENERAL .
The BM9166 family is a positive voltage linear regulator developed utilizing CMOS technology featured low quiescent current (.

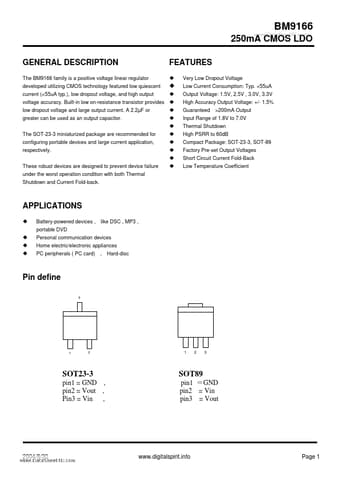

datasheet Preview Page 1 from Datasheet4u.com

BM9166_ETC.pdf

BM9166 Datasheet Preview — Preview of BM9166 PDF

Datasheet Details

Part number:

BM9166

Manufacturer:

ETC

File Size:

278.61 KB

Description:

250mA CMOS LDO

Features

* Very Low Dropout Voltage Low Current Consumption: Typ. 200mA Output Input Range of 1.8V to 7.0V Thermal Shutdown High PSRR to 60dB Compact Package: SOT-23-3, SOT-89 Factory Pre-set Output Voltages Short

Applications

* Battery-powered devices , like DSC , MP3 , portable DVD Personal communication devices Home electric/electronic appliances PC peripherals ( PC card) , Hard-disc Pin define 3 1 2 1 2 3 SOT23-3 pin1 = GND , pin2 = Vout , Pin3 = Vin , SOT89 pin1 ＝GND pin2 = Vin pin3 = Vout 2004/8/30 www. digit
