AC6830R, Air Coil Inductors

datasheet Preview Page 1 from Datasheet4u.com

AC6830R-BOURNS.pdf

AC6830R Datasheet Preview — Preview of AC6830R PDF

Datasheet Details

Part number:

AC6830R

Manufacturer:

BOURNS

File Size:

665.54 KB

Description:

Air Coil Inductors

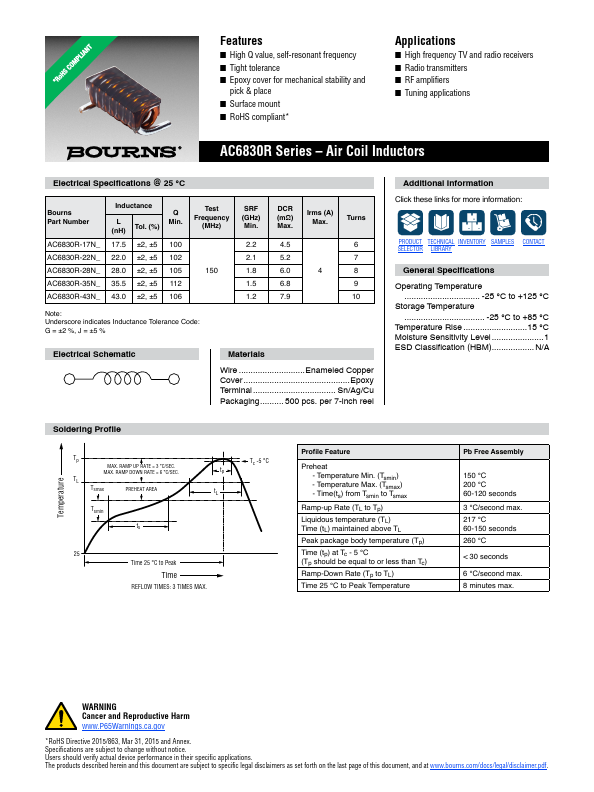

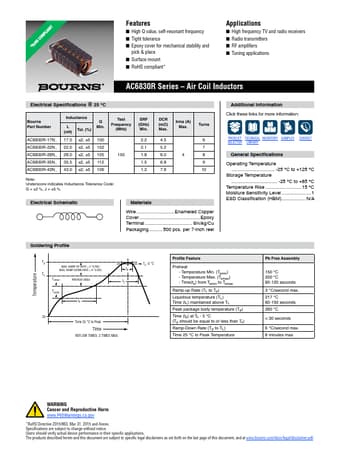

Features

* n High Q value, self-resonant frequency n Tight tolerance n Epoxy cover for mechanical stability and pick & place n Surface mount n RoHS compliant

Applications

* n High frequency TV and radio receivers n Radio transmitters n RF amplifiers n Tuning applications AC6830R Series
* Air Coil Inductors Electrical Specifications @ 25 °C Bourns Part Number AC6830R-17N_ AC6830R-22N_ AC6830R-28N_ AC6830R-35N_ AC6830R-43N_ Inductance L (nH) Tol. (%) Q Min
