AC6905-GL Datasheet - SMB Bearings

AC6905-GL Radial Ball Bearing

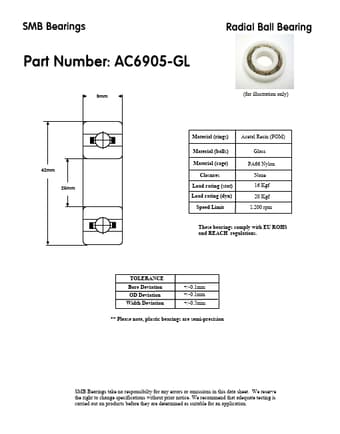

SMB Bearings Part Number: AC6905-GL 9mm Radial Ball Bearing (for illustration only) 42mm 25mm Material (rings) Acetal Resin (POM) Material (balls) Material (cage) Closures Load rating (stat) Load rating (dyn) Speed Limit Glass PA66 Nylon None 16 Kgf 20 Kgf 1,200 rpm These bearings comply with EU ROHS and REACH regulations. TOLERANCE Bore Deviation OD Deviation Width Deviation +/-0.1mm +/-0.1mm +/-0.5mm Please note, plastic bearings are semi-precision SMB Bearings take no res.

AC6905-GL-SMBBearings.pdf

AC6905-GL Datasheet Preview — Preview of AC6905-GL PDF

Datasheet Details

Part number:

AC6905-GL

Manufacturer:

SMB Bearings

File Size:

99.93 KB

Description:

Radial ball bearing.
